CAT5e Cable

Cable Construction

Product Name

Cat.5e UTP Indoor Cable

Model

Model#FE-CAT-5e

Conductor

OD

24AWG£¨0.5mm£©

Material

CCA

Insulation

Material

HDPE

Thickness

0.18mm

OD

0.92mm¡À0.02mm

Nuber Of Conductor

4£¨Twist Pair£©

Pair1£ºOrange/White Orange

Pair2£ºBlue/ White Blue

Pair3£ºGreen/White Green

Pair4£ºBrown/White Brown

Flammability Grade£º

CMR

Jacket

Material

PVC

Thickness

0.6-0.65mm

Operating

-20¡æ-+75¡æ

OD

5.2¡À0.2mm

Surface

Clean,Frap,Satiation

Color

As client's request.

Testing

Testing

Pass Fluke Test£¨4100,4300,1800£©

DC Resistance

Imbalance

2.50%

Transmission Velocity

65%

Standard

ISO/IEC 11801. ANSI/TIA/EIA-568-B.IEC 61156-5. UL910. UL1666.UL444

Print Words On Cable

CAT5e 4P UTP 24AWG VERIFIED TO EIA/TIA 568B.ISO/IEC 11801 EN501 --001M

or clients' request.

Construcation Draw

Electrical Characteristic

Frequency

Impedance

Return

Attenuation

NEXT

NEXT

ELFEXT

ELFEXT

Nominal

Loss

Worst Pair

Power Sum

Worst Pair

Power Sum

Velocity

MHz

Ohm

dB

dB/100

dB

dB

dB

dB

Propagation

0.772

19.8

1.9

67.1

64.1

66.1

63.1

0.65

1

20

2

65.3

62.3

63.8

60.8

4

23

4.1

56.3

53.3

51.7

48.7

8

24.5

5.8

51.8

48.8

45.7

42.7

10

25

6.5

50.3

47.3

43.8

40.8

16

100+/-15

25

8.2

47.3

44.3

39.7

36.7

20

25

9.3

45.8

42.8

37.7

34.7

25

24.3

10.4

44.3

41.3

35.8

32.8

31.25

23.6

11.7

42.9

39.9

33.9

30.9

Application

A.100Base-T4B.100Base-TXC.1000Base-T£¨GigabitEthernet£©D.155MbpsATMF.622MbpsATM

Packing&Shipping

Item

Packing Type

Packing£¨mm£©

Packing

Weight£¨KGS£©

INNERROXICUETI

CARTON£¨CUFT£©

GIFTBOX

CARTON

N.W

G.W

CAT5e

IN GIFTBOX

1.684

3.966

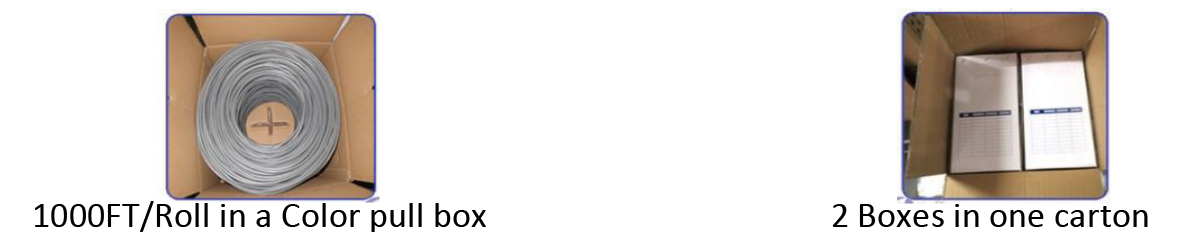

305m/roll

2roll/ctn

13.5

15
