Products
Speker cable
- Contact Us
- Tel/Wechat£º+86 13656538787
- Email£ºeva.wu@wzdecho.com
- Url£ºhttp://www.glinkelectric.com
|
Cable Construction |
||
|
Product Name |

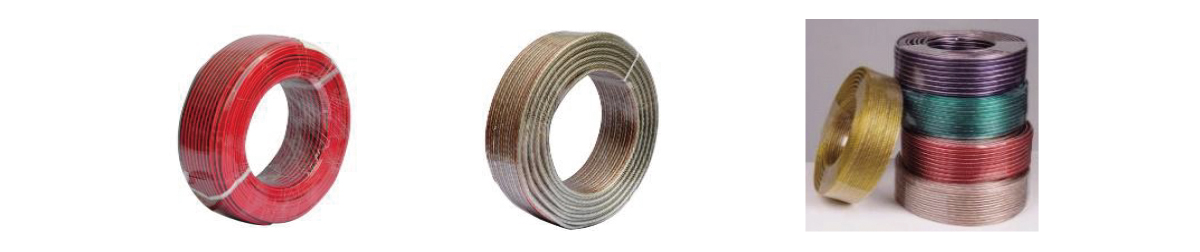

Speaker Cable |
|
|
Model No. |
GL-GA16GL-GA22 |
|
|
Category |
2 conductor speaker cable |
|
|
Packing |
1000ft with plastic Drum |
|
|
Conductor |
Cores |
2Cores£¨stranded£© |
|
Material |
OFC/CU/CCA/CCAM |
|
|
Jacket |
Material |
A variety of colors transparent PVC & Colored PVC |
|
Thickness |
0.4-1.0mm |
|
|
Operating |
-20C-+75¡æ |
|
|
OD |
1.8-6.8mm |
|
|
Color |
Red and Black, Clear, Yellow, Blue, etc.As client's equest. |
|
|
Rated Voltage |
30V-300V |
|
|
Print Words On Cable |
SPEAKER CABLE VOICE CABLE --001M |
|
|
or clients'request. |
||
|
Construcation Draw |
|
|
Types of Conductor
|
Transparent type |
PVC type |
||||||
|
Normal |
Structure |
Insulation |
Overall dia. |
Normal area |
Structure |
Insulation |
Overall dia. |
|
£¨AWG£© |
£¨mm£© |
£¨mm£© |
£¨mm£© |
£¨AWG£© |
£¨mm£© |
£¨mm£© |
£¨mm£© |
|
2x16 |
2x80/0.15 |
0.7 |
2.8x5.8 |
2x16 |
57/0.15 |
0.8 |
3.0x6.0 |
|
2x22 |
2x26/0.15 |
0.7 |
2.0x4.2 |
2x22 |
18/0.15 |
0.8 |
2.2x4.4 |
Application
Used in connecting for audio appliance, home appliance, small electric tools and instruments
All the cables are used for speaker ranges, home theater or audio system
Used for connecting power amplifier and broadcasting systems,
For transmitting the audio signals amplified by the amplifier
Packing & Shipping
|
Item |
Packing Type |
Packing£¨mm£© |
Packing |
Dimension£¨cm£© |
||||
|
Inner |
CARTON |
GIFTBOX |
CARTON |
L |
W |
H |
||
|
SpeakerCable |
In PE roll |
8*8*4 |
40*40*25 |
100m/roll |
8rolls/ctn |
40 |
40 |
25 |
|
In PE roll |
26*26*14 |
53.5*28*30 |
305m/roll |
4rolls/ctn |
53.5 |
28 |
30 |
|
|
Plastic durm |
7.5*7.5*4. |
40*40*25 |
100m/durm |
8durms/ctn |
40 |
40 |
25 |
|
|
|
||||||||
