MODEL NO. GLQRQ-001
Applicant :
The combustible gas alarm is an alarm that detects gas leakage by sensing natural gas. When the concentration of natural gas reaches the alarm value, the alarm will emit a sound and light alarm signal to remind you to take measures to effectively protect the safety of life and property for you and family. It can control other smart hardware products through the linkage of the gateway device, such as flexible control of window openers, exhaust fans, smart curtains and other devices.
Indicator and Buzzer States
|
The indicator blinks red. |
The buzzer beeps. |
The product generatesa gas leakage alarm. |
|
The indicator altemates green and yellow. |
The buzzer does notmake a sound. |
The product is being preheated. |
|
The indicator is steady green. |
The buzzer does notmake a sound. |
The product is workin gproperly. |
|
The indicator is steady yellow. |
The buzzer generatesa long blast of sound. |
The product has an internal fault. |
|
The indicator is steady red. |
The buzzer beeps. |
The productisinself-diagnostic state. |
|
The indicator rapidly blinks green. |
The buzzer doesnotmake a sound. |
The product is in network configuration mode. |
Technical Parameters :
|
Product name |
combustible gas detector |
|
Wireless Technology |
Zigbee |
|
Power input |
DC 5V 1A |
|
Power Supply |
Micro USB DC5V/type-c |
|
Working temperature |
-10¡æ to+55¡æ |
|
Alarm LEL |
8% LEL£¨naturalgas£© |
|
Concentration Error |
¡À3% LEL |
|
Alarm Method |
Audible and visual alarm, andwireless connection alarm |
|
Alarm Sound Pressure |
¡Ý70 dB£¨1 m in front of thegas detector£© |
|
Installation Method |
Wall-mounting orceiling-mounting |
|
Dimensions |
¦µ85x29 |
Security & Installation :

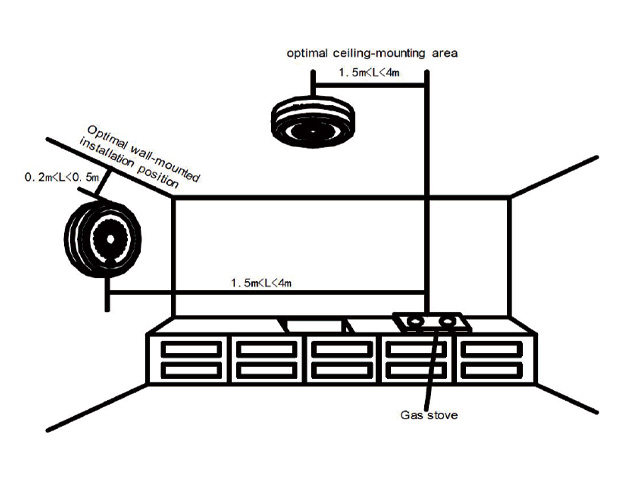

Installation positions
Ceiling mount: Install the product in the annular zone about
1.5 m to 4 m above the gas source.
Wall mount: Install the product on a wall, about 0.2 m to 0.5 m
below the ceiling and 1.5 m away from the gas source.
