MODEL NO. GLQYW-001
Applicant :
Independent photoelectric smoke fire detection alarm is an alarm that detects fire by sensing smoke. When the smoke concentration reaches the alarm value, the alarm will send out a sound and light alarm signal to remind you to take measures to effectively protect safety of life and property for you and your family. It can control other smart hardware products through the linkage of the gateway device, such as flexible control of window openers, exhaust fans, smart curtains and other devices.
Indicator and Buzzer States
|
The indicator blinks red. |
The buzzer beeps. |
The product generates an alarm. |
|
The indicator is steady green. |
The buzzer does notmake a sound. |
The product is workingproperly. |
|
The status indicator blinks yellow once. |
The buzzer beeps. |
The product haslow power. |
|
The status indicator blinks red. |
The buzzer does notmake a sound. |
The product is inself-diagnostic state. |
|
The status indicator rapidly blinks green. |
The buzzer does notmake a sound. |
The product is in network configuration mode. |
|
The status indicator blinks yellow. |
The buzzer beeps. |
The product is faulty. |
Technical Parameters :
|
Product name |
photoelectric smoke detector |
|
Wireless Technology |
Zigbee |
|
Working Voltage |
DC 3V |
|
Undervoltage Alarm |
Supported |
|
working temperature |
-10¡æ to +55¡æ |
|
Detector Type |
Independent smoke detector |
|
Battery Lifespan |
More than one year£¨20 times per day£© |
|
Alarm Sound Pressure |
285 dB£¨3 m in front of the smoke detector£© |
|
Installation Position |
Ceiling |
|
Dimensions |
¦µ90mm x 40mm |

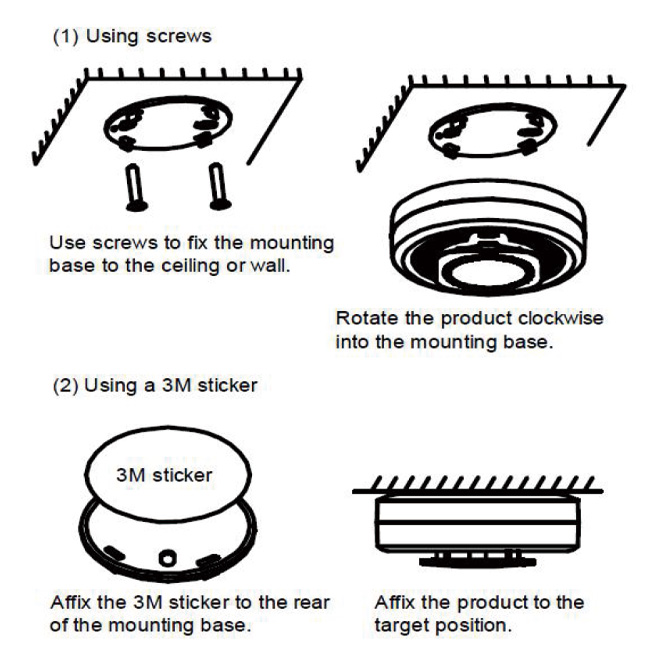

Security & Installation :
